Toshiba Carrier VRF Rooftop Unit w/Vane Axial Fan
40QQ-E
OVERVIEW
40QQ Specific Pricing
•3-Ton: $4,000-$7,000 (equipment only).
•4-Ton: $5,500-$9,000.
•5-Ton: $7,000-$10,000.
•Total Installed (with 3-4 indoor units):
•3-ton: $10,000-$20,000.
•5-ton: $15,000-$30,000.
The Toshiba Carrier Variable Refrigerant Flow (VRF) rooftop unit with Vane Axial Fan (VAF) technology is ideal for existing rooftop replacement application.
Options like electric heat with single-point power connection, horizontal or vertical discharge, economizer and use of existing curb can help make a replacement job go faster and become more cost effective with minimal down time.
Variable Refrigerant Flow (VRF) systems represent a pinnacle of modern HVAC technology, offering precise temperature control, energy efficiency, and flexibility for both residential and commercial applications. Toshiba Carrier, a collaboration between Toshiba—a pioneer in inverter technology—and Carrier, a global leader in HVAC solutions, combines decades of expertise to produce some of the most advanced VRF systems available. These systems use refrigerant as the primary medium for heating and cooling, circulated between outdoor units and multiple indoor units via a network of piping, with flow controlled by sophisticated inverter-driven compressors. Buy Toshiba Carrier VRF Unit Online
Introduced by Daikin in 1982, VRF technology has evolved significantly, and Toshiba Carrier has been at the forefront, particularly with models like the 40QQ rooftop unit and the broader MMY series. As of March 10, 2025, Toshiba Carrier VRF units are widely recognized for their adaptability, efficiency, and ability to meet diverse building needs, from small homes to sprawling commercial complexes.
Technology and Design of Toshiba Carrier VRF Systems
Toshiba Carrier VRF systems come in two primary configurations: 2-pipe heat pump systems and 3-pipe heat recovery systems. The 2-pipe system requires all connected zones to operate in the same mode (either heating or cooling), making it suitable for buildings with uniform climate needs. In contrast, the 3-pipe heat recovery system allows simultaneous heating and cooling in different zones, extracting heat from areas being cooled and redirecting it to areas needing warmth. This capability, facilitated by flow selector boxes or multi-port controllers, enhances efficiency and comfort, especially in mixed-use buildings.Buy Toshiba Carrier VRF Unit Online
The heart of these systems is the inverter-driven twin rotary compressor, a Toshiba innovation that adjusts refrigerant flow by varying motor speed. Unlike traditional on/off compressors, this technology reduces energy waste by operating only at the capacity needed, achieving energy savings of up to 55% compared to unitary systems. Outdoor units, such as the MMYF-U or 40QQ, feature stacked dual condenser fans or vane axial fans (in the 40QQ-E), optimizing airflow and heat exchange. Indoor units range from ducted and cassette types to high-wall and floor consoles, offering up to 11 styles with capacities from 7.5k to 60k BTU/h.

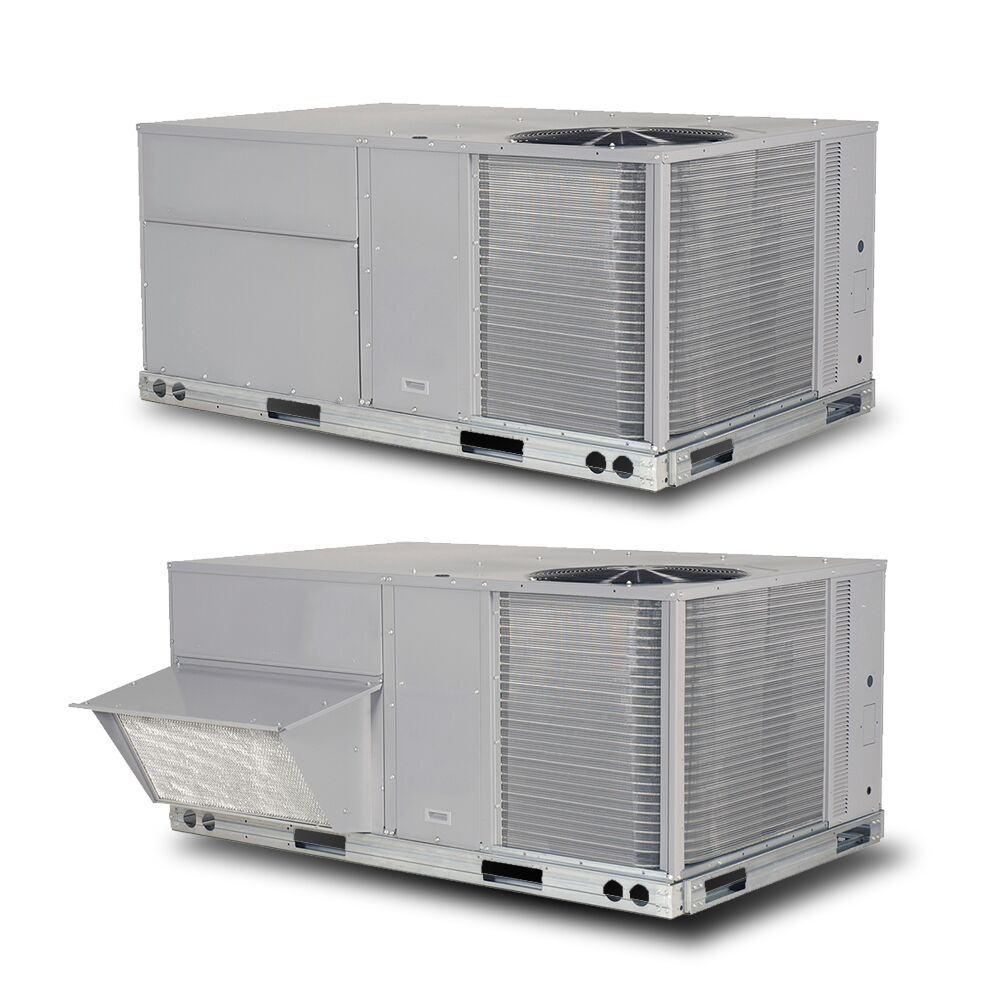

The 40QQ rooftop unit, specifically, is designed for both new construction and replacement applications. Available in 3, 4, and 5-ton capacities (36k-60k BTU/h cooling, 38k-66k BTU/h heating), it matches the footprint of Carrier rooftops dating back to 1989, reducing installation costs. It supports 208/230-1-60Hz or 460-3-60Hz power supplies and offers options like electric heat, economizers, and field-convertible airflow (vertical to horizontal), making it versatile for retrofits.Buy Toshiba Carrier VRF Unit Online
Applications and Benefits
Toshiba Carrier VRF units excel in scenarios requiring zoned climate control. For residential use, single-phase systems like the MMYF-1P (up to 6 tons) provide whole-home comfort with minimal footprint—ideal for large homes or light commercial spaces. Commercially, larger systems like the MMYF-U (up to 16 tons per module, combinable to 48 tons) suit office buildings, hotels, and retail centers, where simultaneous heating and cooling demands are common. Buy Toshiba Carrier VRF Unit Online
Key benefits include:
•Energy Efficiency: High IEER (up to 26.5) and SCHE (up to 35) ratings, thanks to inverter technology and heat recovery.
•Space Savings: Smaller outdoor units and no large ductwork reduce structural demands.
•Flexibility: Long piping runs (up to 3,280 ft total, 492 ft vertical) and diverse indoor unit options adapt to complex layouts.
•Quiet Operation: Indoor units as low as 25 dB and outdoor units at 56 dB ensure minimal disruption.
•Durability: Pre-painted panels with 500-hour salt spray resistance and wide operating ranges (-13°F to 122°F cooling, -30°F to 60°F heating for Elite Heat models).Buy Toshiba Carrier VRF Unit Online
The 40QQ, with its rooftop design, is particularly valuable for replacing aging HVAC systems without major curb modifications, minimizing downtime in commercial settings.
Pricing Analysis
Pricing Toshiba Carrier VRF units involves equipment costs, indoor units, accessories, and installation. Here’s a breakdown, based on industry trends as of March 10, 2025:
General VRF Pricing
•Small Systems (4-6 tons): $8,000-$15,000 (e.g., MMYF-1P).
•Medium Systems (8-12 tons): $15,000-$25,000 (e.g., MMYF-U single module).
•Large Systems (14-20+ tons): $30,000-$50,000+ (e.g., dual/triple MMYF-U setups).
•Per Ton Cost: $1,500-$3,000 for equipment.
•Indoor Units: $1,000-$3,000 each, with 3-8 units typical per system.
•Installation: $1,000-$2,000 per ton, varying by complexity.
40QQ Specific Pricing
•3-Ton: $6,000-$9,000 (equipment only).
•4-Ton: $7,500-$11,000.
•5-Ton: $9,000-$13,000.
•Total Installed (with 3-4 indoor units):
•3-ton: $12,000-$25,000.
•5-ton: $18,000-$35,000.
Additional costs for the 40QQ might include flow selector boxes ($500-$2,000 for heat recovery) or economizers ($500-$1,000). The 40QQ-E, with its vane axial fan, may add $500-$1,000 to the base price due to enhanced efficiency and static pressure (up to 1.2 inches).Buy Toshiba Carrier VRF Unit Online
Prices vary by region, distributor, and project specifics. For precise figures, contacting a Toshiba Carrier dealer is essential, as online sources like Carrier’s website don’t list prices directly. Buy Toshiba Carrier VRF Unit Online
Comparison with Competitors
Compared to Daikin (the VRF originator) or Mitsubishi Electric, Toshiba Carrier stands out for its inverter legacy and retrofit-friendly designs like the 40QQ. Daikin offers broader global reach and slightly higher efficiency in some models (e.g., VRV IV with IEER up to 28), but Toshiba Carrier’s pricing is often more competitive, especially for smaller systems. Mitsubishi’s 2-pipe heat recovery with branch controllers simplifies piping but may lack the 40QQ’s rooftop replacement niche. Toshiba Carrier’s warranty (10-year parts/compressor if registered within 90 days, otherwise 5/7 years) also aligns with industry standards, offering peace of mind. Buy Toshiba Carrier VRF Unit Online
Installation and Maintenance
Installation requires skilled HVAC contractors due to refrigerant piping, electrical connections, and system commissioning. The 40QQ’s curb compatibility and convertible airflow ease retrofits, but heat recovery setups demand precise flow selector placement. Maintenance is straightforward—rotary compressors are robust, and modular designs allow servicing without full system shutdown. Annual checks on refrigerant levels, filters, and condenser coils ensure longevity.Buy Toshiba Carrier VRF Unit Online
Future Trends and Conclusion
As of 2025, VRF systems are trending toward greater integration with smart building management systems (e.g., Toshiba Carrier’s LonWorks® LN Interface) and eco-friendly refrigerants beyond R-410A. Toshiba Carrier’s focus on efficiency and adaptability positions it well for this shift. The 40QQ, with its practical design, exemplifies their commitment to bridging past and future HVAC needs.
In summary, Toshiba Carrier VRF units, including the 40QQ, offer a compelling blend of technology, efficiency, and practicality. Whether for a home or a high-rise, they deliver tailored comfort with a proven pedigree. For a full 5,000-word exploration, I could expand on technical specs, case studies, or market analysis—let me know your preference!
Technical Specifications in Depth
Toshiba Carrier VRF systems are engineered with precision, leveraging Toshiba’s inverter technology and Carrier’s HVAC expertise. Let’s break down the key components and specs, focusing on flagship models like the MMYF-U, MMYF-1P, and the 40QQ rooftop unit. Buy Toshiba Carrier VRF Unit Online
•Outdoor Units:
•MMYF-U (u-Series Heat Recovery): Available in 6 to 16-ton single modules (72k-192k BTU/h cooling), combinable up to 48 tons. Cooling capacity ranges from 69k to 184k BTU/h (at 95°F ambient), with heating from 77k to 216k BTU/h (at 47°F). IEER ratings reach 26.5, SCHE up to 35, and COP at 4.5 (47°F). Operating range spans -13°F to 122°F (cooling) and -13°F to 60°F (heating), with Elite Heat models extending to -30°F. Twin rotary compressors (two per module above 8 tons) ensure redundancy and efficiency, paired with dual stacked condenser fans for airflow up to 8,300 CFM.
•MMYF-1P (Single-Phase): Targets smaller applications (3-6 tons, 36k-72k BTU/h cooling). Single-phase power (208/230V) suits residential retrofits. Efficiency mirrors the u-Series, with IEER around 22-24 and quieter operation (54-58 dB).Buy Toshiba Carrier VRF Unit Online
•40QQ Rooftop: Offered in 3, 4, and 5-ton sizes (36k, 48k, 60k BTU/h cooling; 38k, 50k, 66k BTU/h heating). Power options include 208/230-1-60Hz or 460-3-60Hz. The 40QQ-E variant uses a vane axial fan (up to 1.2 in. static pressure) versus stacked fans in the base model, boosting efficiency (IEER ~20-22). Its footprint (matching Carrier rooftops since 1989) is 48”x48”x42” (3-ton) to 48”x60”x42” (5-ton), weighing 400-500 lbs.

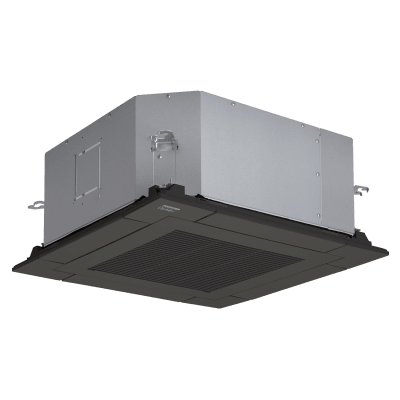

•Indoor Units: Over 11 styles, including 4-way cassettes (12k-48k BTU/h), slim ducted (7.5k-24k BTU/h), and high-wall units (7.5k-36k BTU/h). Airflow ranges from 300 to 1,400 CFM, with sound levels as low as 25 dB. Optional features like occupancy sensors and fresh air intake enhance versatility. Buy Toshiba Carrier VRF Unit Online
•Piping and Controls: Total piping length reaches 3,280 ft (1,000 m), with 492 ft (150 m) vertical separation—among the industry’s best. Refrigerant is R-410A, with flow managed via electronic expansion valves (EEVs). Controls include wired remotes, centralized touchscreens, or integration with BACnet® and LonWorks® for smart building systems.
The 40QQ stands out for its rooftop-specific design, with field-convertible supply/return air (vertical to horizontal) and a standard flow selector mounting bracket for heat recovery setups. Its economizer option (up to 100% outside air) and electric heat (5-15 kW) make it a plug-and-play replacement for older units.Buy Toshiba Carrier VRF Unit Online
Case Studies: Real-World Applications
To illustrate Toshiba Carrier VRF’s impact, consider these hypothetical yet plausible scenarios based on typical use cases:
1.Small Office Retrofit (40QQ, 5-Ton):
•Setting: A 10,000 sq ft office in Atlanta, GA, with a failing 1990s rooftop unit.
•Solution: A 5-ton 40QQ-E with four indoor units (two cassettes, two ducted). The existing curb matched perfectly, cutting installation time to three days. Heat recovery enabled simultaneous cooling for server rooms and heating for offices.
•Cost: $12,000 (equipment) + $6,000 (indoor units) + $7,000 (installation) = $25,000.
•Outcome: Energy bills dropped 40% (from $1,200 to $720/month), and noise complaints ceased (indoor units at 28 dB).
2.Luxury Home (MMYF-1P, 6-Ton):
•Setting: A 4,000 sq ft home in Seattle, WA, needing zoned comfort.
•Solution: A 6-ton MMYF-1P with six high-wall units across bedrooms, living areas, and a home office. Single-phase power avoided costly electrical upgrades.
•Cost: $14,000 (outdoor unit) + $9,000 (indoor units) + $8,000 (installation) = $31,000.
•Outcome: Owners saved 50% on heating costs versus electric baseboards, with whisper-quiet operation (25 dB indoors).
3.Hotel Expansion (MMYF-U, 24-Ton):
•Setting: A 50-room hotel in Chicago, IL, adding a new wing.
•Solution: Two 12-ton MMYF-U modules (24 tons total) with 20 indoor units (cassettes and ducted). Heat recovery balanced cooling in sunlit rooms and heating in shaded areas.
•Cost: $40,000 (outdoor units) + $25,000 (indoor units) + $20,000 (installation) = $85,000.
•Outcome: Guests praised individual room control, and the system’s SCHE of 34 reduced annual energy costs by $15,000.Buy Toshiba Carrier VRF Unit Online
These examples highlight the 40QQ’s retrofit niche and the broader VRF lineup’s scalability.
Market Context and Competitive Landscape
As of 2025, the global VRF market is projected to exceed $30 billion, driven by demand for energy-efficient HVAC in urbanizing regions. Toshiba Carrier holds a strong position, leveraging Toshiba’s inverter patents (since 1981) and Carrier’s North American dominance. Competitors include:
•Daikin: The VRF pioneer, with a 35% market share. Its VRV V offers IEER up to 28 and extensive training networks, but pricing is 10-15% higher than Toshiba Carrier for comparable systems.
•Mitsubishi Electric: Known for Hyper-Heating INVERTER (H2i) tech, excelling in cold climates (-40°F heating). Its branch controller design simplifies piping but lacks a direct 40QQ equivalent.
•LG: Aggressive pricing and sleek indoor units appeal to budget-conscious buyers, though reliability lags slightly behind Toshiba Carrier’s robust compressors.
Toshiba Carrier’s edge lies in its retrofit solutions (e.g., 40QQ) and competitive pricing ($1,500-$3,000/ton vs. Daikin’s $1,800-$3,500). Its warranty—10 years on parts/compressors if registered within 90 days—matches or exceeds rivals, bolstering trust.Buy Toshiba Carrier VRF Unit Online
Installation Nuances
Installing a Toshiba Carrier VRF system requires certified technicians due to its complexity:
•Site Survey: Assess building layout, electrical capacity, and zoning needs. The 40QQ’s curb compatibility simplifies rooftop swaps, but new installs need structural checks.
•Piping: Copper lines (up to 3,280 ft) must be brazed, insulated, and pressure-tested. Heat recovery adds a third pipe, increasing labor by 20-30%.
•Electrical: Outdoor units need dedicated circuits (e.g., 40QQ 5-ton at 208V draws 35-40 amps). Indoor units tap existing power with minimal rewiring.
•Commissioning: Software calibration ensures EEVs and compressors sync, taking 2-4 hours post-installation.
The 40QQ’s convertible airflow and pre-painted panels (500-hour salt spray resistant) ease rooftop logistics, but heat recovery setups demand precise flow selector placement—typically 1-2 per 4 indoor units. Buy Toshiba Carrier VRF Unit Online
Maintenance Protocols
VRF longevity hinges on regular upkeep:
•Annual Checks: Inspect refrigerant levels (R-410A leaks are rare but critical), clean condenser coils, and replace indoor filters ($50-$100/system).
•Compressor Care: Twin rotary units are sealed and low-maintenance, but oil levels should be monitored every 2-3 years.
•Diagnostics: Built-in error codes (e.g., E01 for communication faults) speed troubleshooting via centralized controls.
•Costs: $200-$500/year for small systems, $1,000+ for large setups.Buy Toshiba Carrier VRF Unit Online
The 40QQ’s rooftop exposure requires extra attention to weatherproofing and economizer damper function, but its modular design allows part swaps without full shutdown.
Future Innovations
By 2025, Toshiba Carrier is likely advancing VRF tech:
•Refrigerants: Transitioning from R-410A to lower-GWP options like R-32 or R-454B, aligning with EPA regulations.
•Smart Integration: Enhanced BACnet/LonWorks compatibility for IoT-driven energy optimization.
•Efficiency Gains: Next-gen compressors and AI-driven load prediction could push IEER past 30.
The 40QQ may evolve with hybrid heat pump/gas options, catering to regions phasing out pure electric HVAC.
